KEY FEATURES

  • Design is modular and optimized for weight, facilitating simple installation using a tower crane
  • Standard inclusion of a radio remote control
  • Straightforward installation on floors or within elevator shafts
  • Complies with the ASME B30.27-2014 Standard

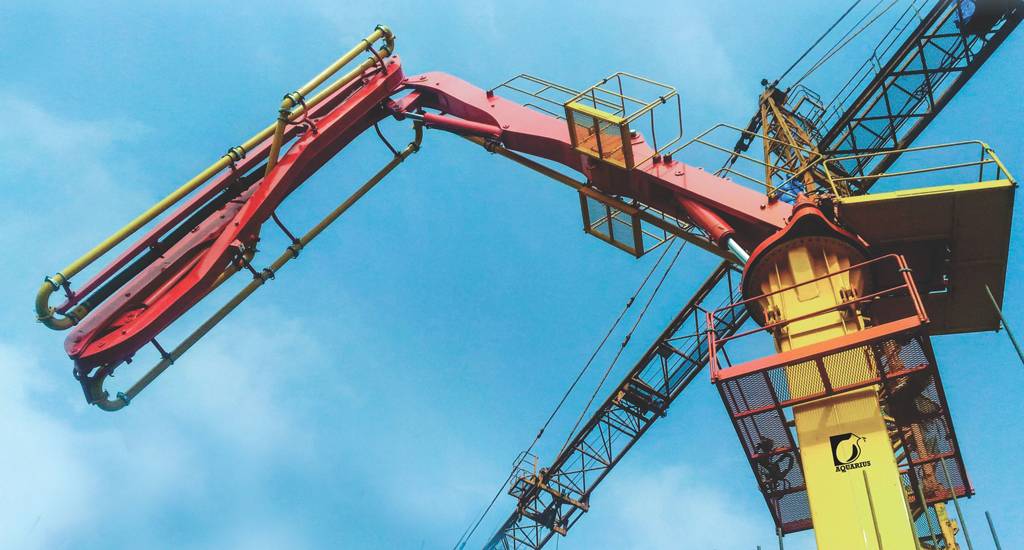

Stationary Boom Placers SB 33

Parameters

UnitSB 33
Arms3 Arms (R Folding)
Max. Vertical reachmm35m
Max. Horizontal Reachmm33m
Working Rangemm3420m
Machine Weight (TOTAL)kg21,000 kg
Counter WeightNA
Electrical PowerkW415V, 50 Hz, 15kW
Top mast(6m)kg3100
End Hose Lengthmm3m
Mast Setmm3 X 6 m
Cross Base and anchor setOptional
Mast Hydraulic Climbing SystemIncluded
Remote ControlRadio Remote
Weight of Heaviest Partkg3100 kg

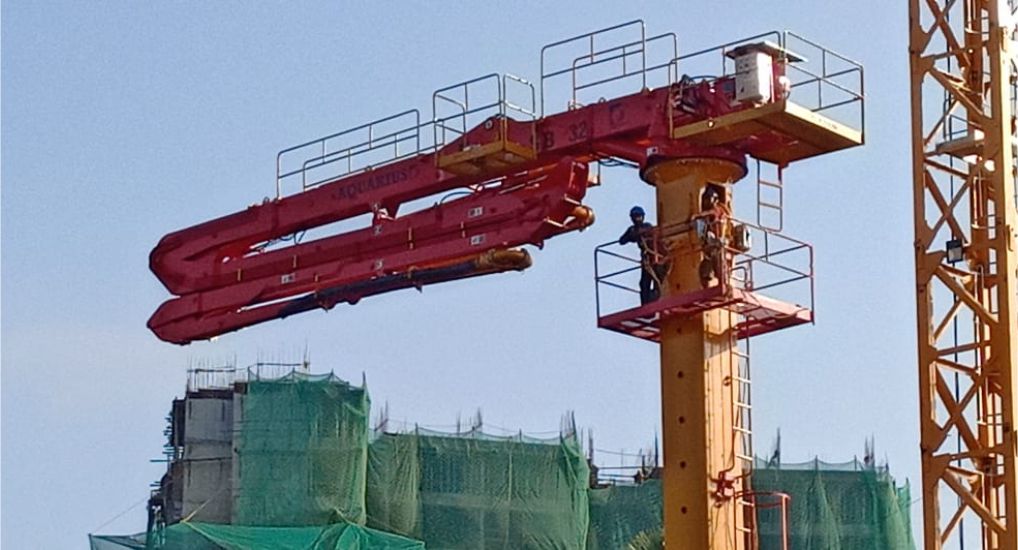

Stationary Boom Placers SB 36

Parameters

UnitSB 36
Max. Vertical reachmm36m
Max. Horizontal Reachmm36m
Delivery Pipe Diametermm125
Slewing RangedegFree Slewing
Each Section Length1st Arm (mm)13000
2nd Arm
(mm)
7500
3rd Arm
(mm)
7500
4th Arm
(mm)
7800
Weight Of Boom with pedastalkg9000
Top mast(6m)kg3100
Lower mast(6m)kg2800
Counter WeightNoNo
DrivekW18.5kW/415V
3phase
End Hosem4
Cross BaseOptional
